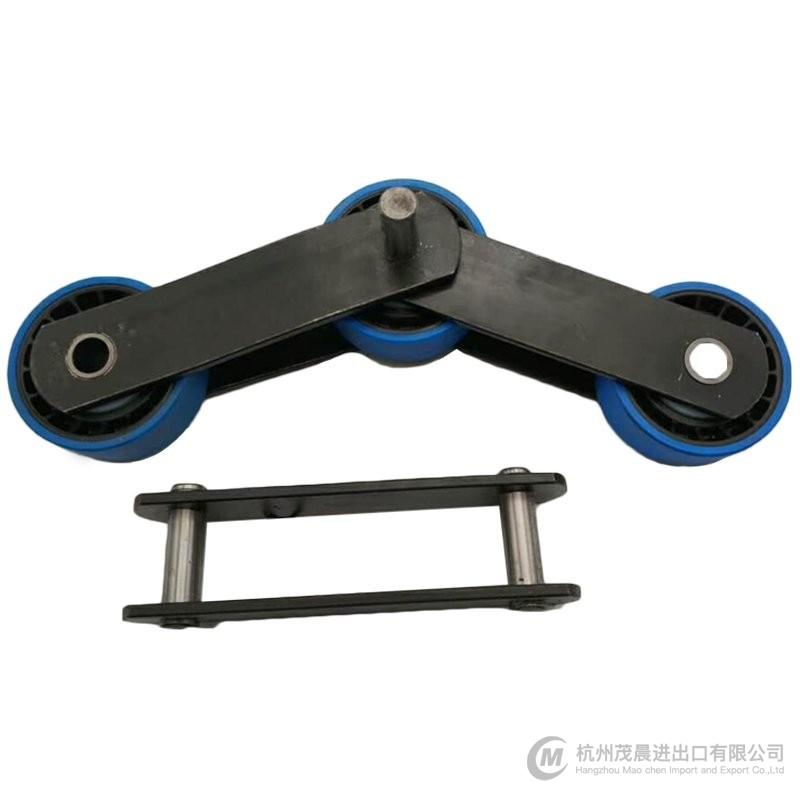

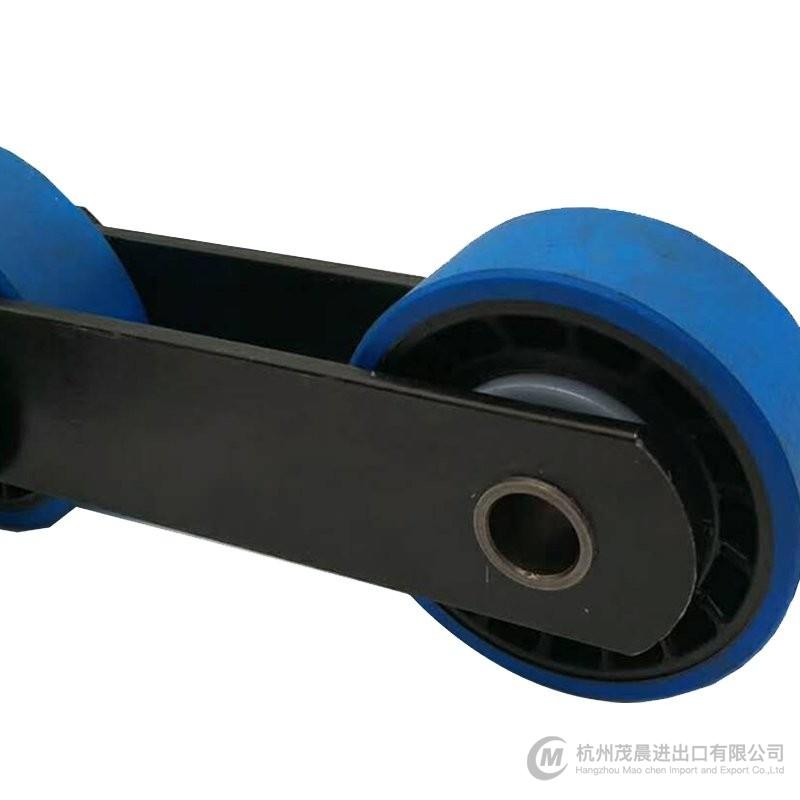

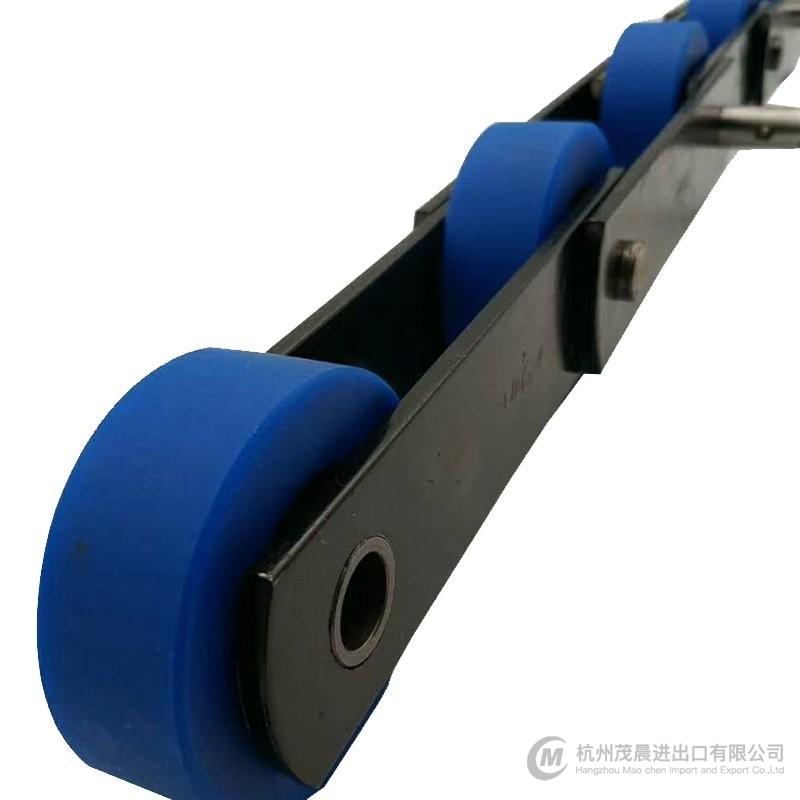

Escalator Step Chain for  9300 / 9500 & OTIS 506 / 508 with Axle

Product Overview

Escalator Step Chain is a critical transmission component used to drive and synchronize escalator steps during operation. It is designed for reliable power transmission, accurate step movement and long-term service in escalator systems.

This step chain is available for various escalator models, including  9300,  9500, OTIS 506 and OTIS 508. The assembly can be supplied with axle, according to the required escalator configuration.

The chain is manufactured for replacement, maintenance, repair and escalator modernization projects.

Product Specifications

Compatible Escalator Models

• 9300 Escalator

•  9500 Escalator

• OTIS 506 Escalator

• OTIS 508 Escalator

Different escalator models may use different chain dimensions, roller configurations, axle sizes and connection details. Please confirm the escalator model, step width, chain pitch and roller dimensions before ordering. Publicly available technical references also show that 9300 and 9500/OTIS-series step chains can have different roller and axle configurations.

Main Features

High-Strength Escalator Step Chain

Designed specifically for escalator step-drive applications, providing reliable transmission between the drive system and escalator steps.

With Axle

The step chain can be supplied with the corresponding step axle, providing a convenient solution for chain replacement and maintenance.

Wide Model Compatibility

Suitable for commonly serviced escalator models including 9300, 9500, OTIS 506 and OTIS 508, subject to exact technical configuration.

Stable Step Movement

Accurate chain pitch and properly matched components help maintain synchronized step movement and smooth escalator operation.

Replacement & Modernization

Suitable for:

• Escalator step chain replacement

• Preventive maintenance

• Escalator repair

• Escalator modernization

• Long-term spare parts inventory

• Complete step chain assembly replacement

Step chains are fundamental components in escalator systems because they transmit power and move the steps through the escalator loop.

Technical Reference

For the Schindler 9300 series, commonly referenced configurations include a 133.33 mm pitch and roller dimensions around 76 × 25 mm, although exact specifications can vary by unit and configuration.

For OTIS 506 / 508 applications, chain pitch and roller specifications should be verified against the specific escalator model and serial/unit information before replacement. OTIS documentation also indicates that step-chain ordering can depend on escalator type, width and the number of steps.

Ordering Information

To supply the correct step chain, please provide:

1. Escalator Brand:
Schindler / OTIS / Other

2. Escalator Model:
9300 / 9500 / 506 / 508 / Other

3. Step Width:
600 mm / 800 mm / 1000 mm / Other

4. Chain Pitch

5. Roller Size

6. Axle Diameter / Length

7. Number of Steps

8. Required Quantity

This information helps us confirm the correct chain configuration and axle specification.

Applications

The Escalator Step Chain is suitable for:

• Shopping malls

• Metro stations

• Airports

• Railway stations

• Commercial buildings

• Supermarkets

• Public transportation facilities

• Escalator maintenance workshops

Packaging & Delivery

Packaging: Export Wooden Case / Strong Export Packaging

Transportation:

• Sea Freight

• Air Freight

• Land Transportation

• Courier Service

Delivery Time: According to order quantity and product configuration.

After-Sales Service

We provide technical support for:

• Model confirmation

• Chain specification verification

• Axle matching

• Installation guidance

• Replacement parts

• Technical consultation

Recommended Product Title

Escalator Step Chain with Axle for Schindler 9300 9500 OTIS 506 508

Alibaba SEO Title

Escalator Step Chain with Axle for Schindler 9300 9500 OTIS 506 508 13KN 18KN

Google SEO Title

Escalator Step Chain with Axle | Schindler 9300 9500 & OTIS 506 508

Short Product Description

Escalator Step Chain with Axle for Schindler 9300 / 9500 and OTIS 506 / 508. Designed for reliable escalator step drive, power transmission and synchronized step movement. Available in 13KN and 18KN configurations according to the required application. Suitable for escalator maintenance, replacement and modernization projects.
